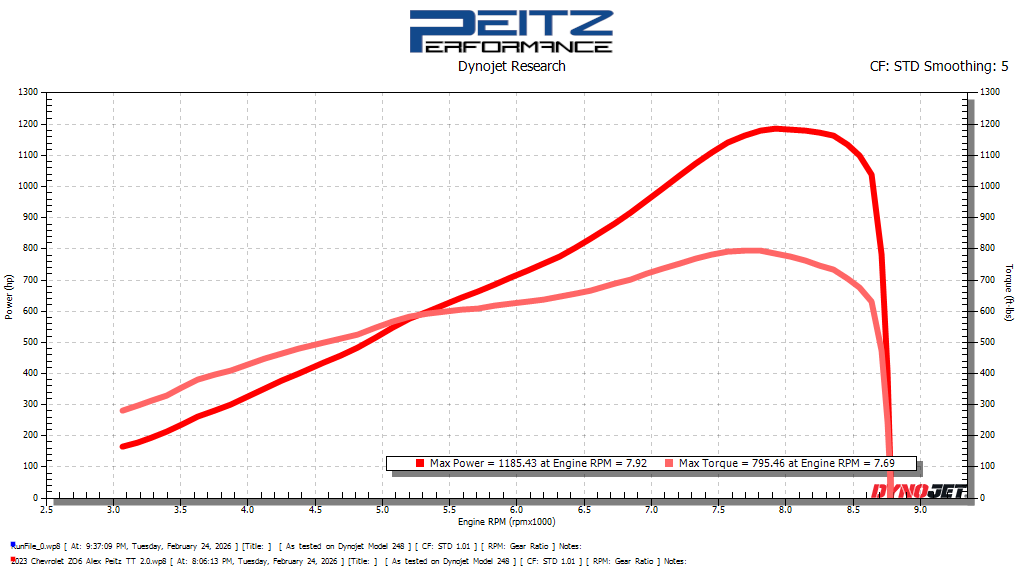

The bar has just been set higher yet again here at Peitz Performance. We are proud to announce we are now using HP Tuners software to dial in our twin turbo offerings for the C8 Z06! This means more horsepower per dollar and better diagnostic functionality from our already popular C8 Z06 turbo kits. We have now made a stunning 1185 rear wheel horsepower on a Dynojet on STD correction at SAM Tech on the stock bottom end (Bravo Plus)!
For starters, we built on our already highly successful twin turbo offerings for the Stingray and took it many steps further. We knew cooling would be paramount on this car as it comes out of the box with a high revving, high compression, naturally aspirated, flat plane crank monster! To tame this beast, we made a dual outlet air to water intercooler standard on all packages. On Bravo and up, direct port methanol injection is standard. You can opt for an E85 set up using our port injection controller and Alpha in-tank triple pump fuel system. Additionally, all packages feature dual heat exchangers up front with 2 reserviors totaling about 5 gallons of coolant capacity which really keeps temps at bay.
On the "hot side" of the kit, we paid homage to our x pipe standards we established on the Stingray and added a bespoke x pipe for the C8 Z06. Additionally, we changed things up a bit on the wastegate dumps and added the dumps to the outside openings of the center exit exhaust holes, making for a pretty cool show at night time with some cool fire spitting action.
For tuning, we use a combination of HP Tuners to tune the factory engine control module and either the Cortex boost/methanol controller or a port injection/boost controller featuring a Core ECM from HP Tuners. This combination allows us to dial in the car at idle and part throttle giving you stock like driveability and tons more horsepower when you go full throttle. Furthermore, using either the Cortex or Core ECM allows us to limit boost per gear and ramp in boost based on RPM, throttle position and more! Not to mention being able to select multiple boost profiles with the push of a button on demand without flashing the factory engine control module. With our Bravo Plus package, you can nearly double your horsepower using these modifications!

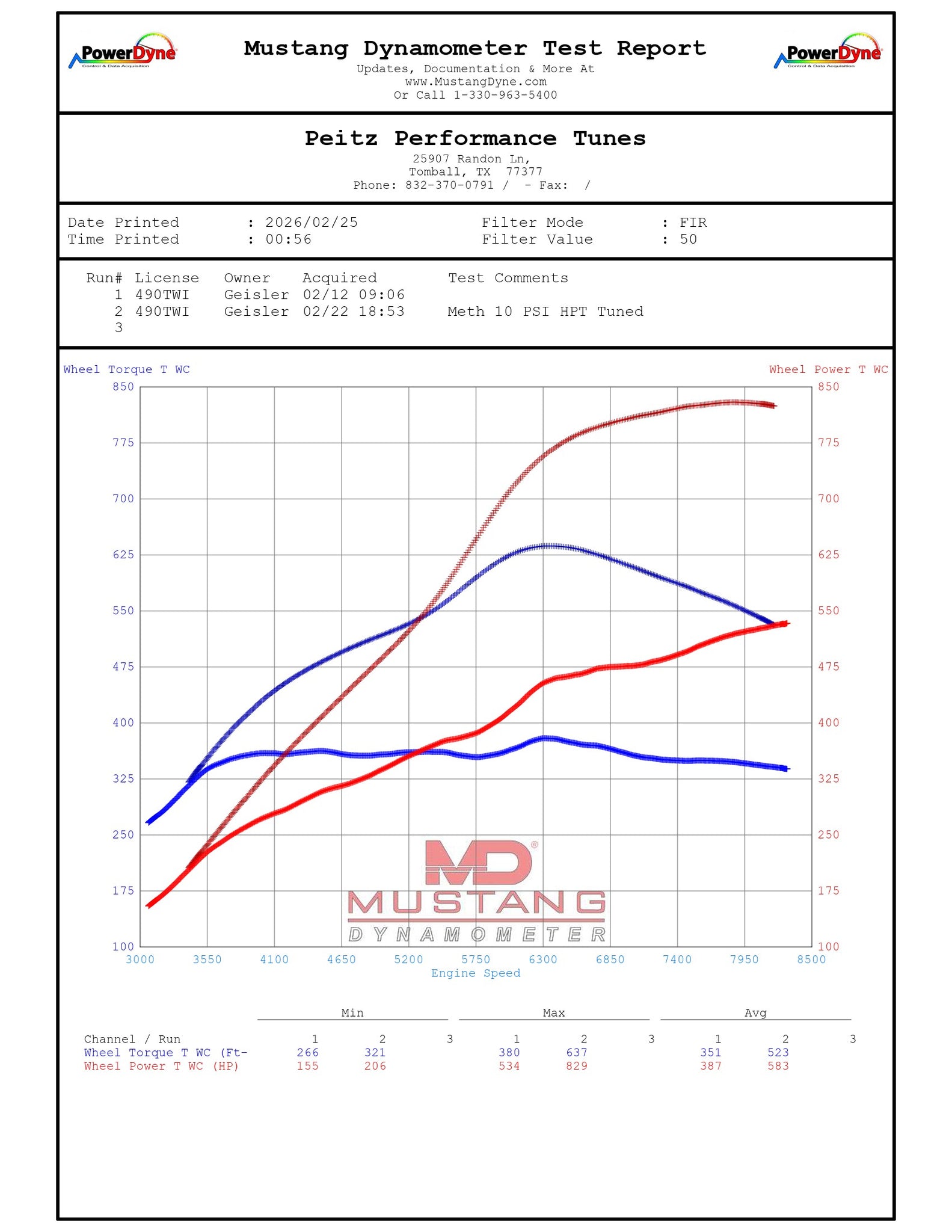

With the addition of HP Tuners to the mix, we are now able to offer a Bravo Lite package for the C8 Z06! This is a 93 only package which can add up to approximately 250 rear wheel horsepower depending on what dyno you are on. We made 775 RWHP and 559 lb ft of torque on 93 only and 10 PSI of boost on our Mustang dyno (approximately 875 on a Dynojet when factored at a 13% differential). This is going to be the most "bang for the buck" offering on the C8 Z06.
Horsepower gains (on Mustang dyno):
Bravo Lite - 245 HP (stock clutches) 45% gain
Bravo - 300 HP (stock clutches) 57% gain
Bravo Plus - 487 HP (w/Dodson Sportsman clutches) 92% gain
Alpha - 600+ HP (results pending)
Key Features:
- Fits coup and convertible models
* No loss of trunk space! (only 10" vertical frunk space lost for meth tank) (( Bravo and up)
* 1 Precision Turbo Next Gen 62/66 Standard Rotation Turbo
* 1 Precision Turbo Next Gen 62/66 Reverse Rotation Turbo
* Dual TurboWerx Exa Mini scavange pumps
* Dual outlet water to air intercooler (requires no cutting of rear trunk)
* Dual heat exchangers mounted in front bumper
* Tunnel mounted intercooler reservior with expansion tank in frunk (4 gal capacity)
* Davies Craig Intercooler pump mounted to reservior
* Center exit x pipe to factory exhaust openings
* Side/center exit dumps for wastegates
* 2x Precision 33 mm blow-off valves
* 2x Precision 46 mm wastegates
* Electronics assembly with plug and play wiring for all pumps and accessories
* MAF decoder/encoder modules (1 per MAF)
* Electronics panel mounted in the tunnel for clean insatll
* Boost/Methanol Controller allowing boost by gear and RPM/Boost meth control
* Clutch pressure controller w/accelerator input
* Ceramic coating on turbine housings and hot up pipes standard
* PTFE oil feed and return lines (-4 AN and -10 AN)
* Mighty Mouse Wild Catch Can
* Direct port methanol injection (Bravo and up)
* Pro Meth methanol pump, lines, fittings etc (Bravo and up)
* HP Tuners MPVI 4 interface for logging & remote diagnostics
* Tuning support included (remote or in house dyno tuning)

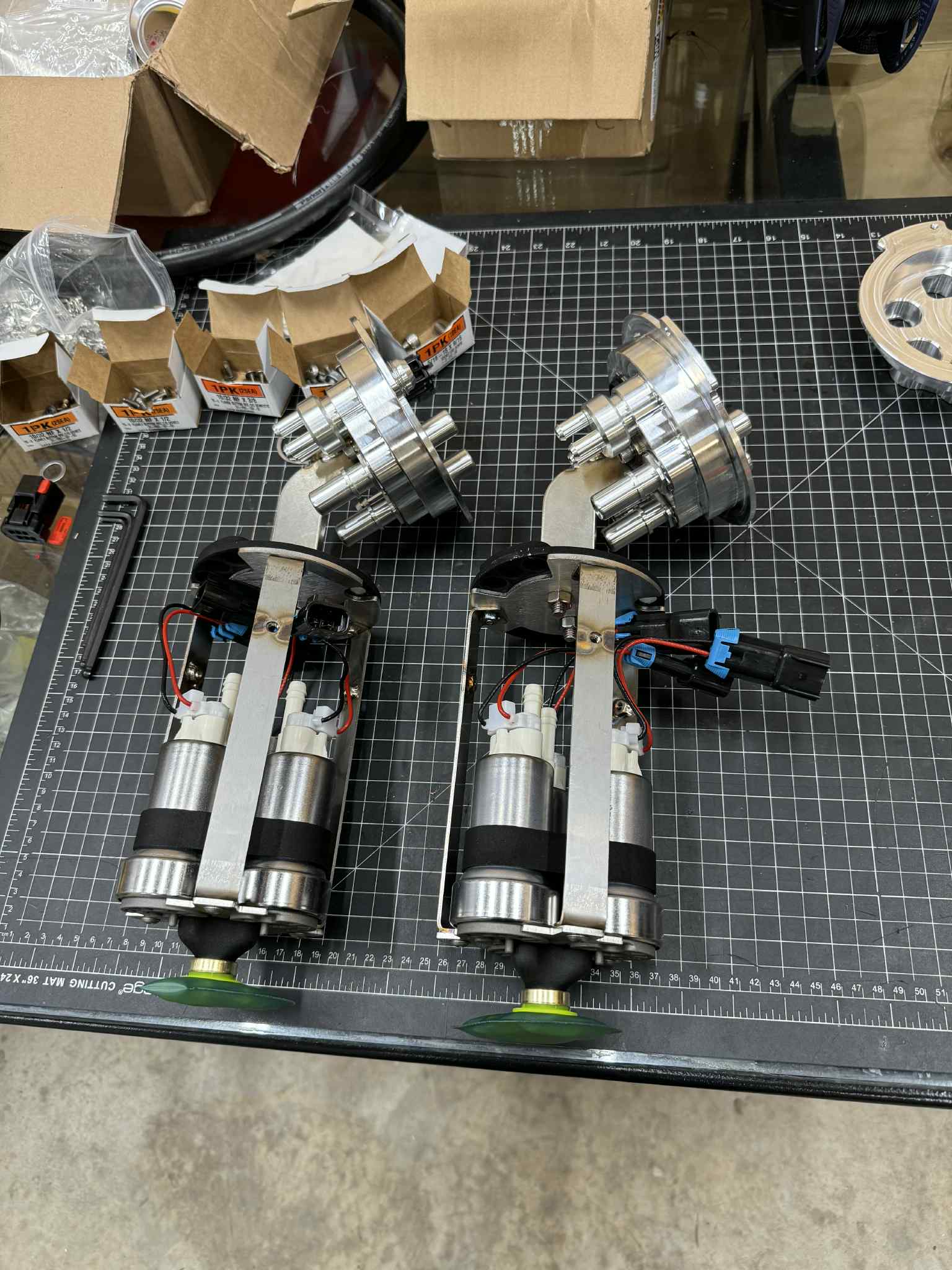

For additional information, feel free to contact our sales team and we will be happy to discuss it with you! Please see the pictures here from development so you can see some of the work that went into it. Please note, all aluminum items such as the expansion tank, intercooler reservior, intercooler etc. will be coated standard as well! These pics were taken during development prior to coating.
